Live Broadcasting Settings

1. Live Streaming needs setting  output targets and encoding parameters.

2. Setting Targets

         Add RTMP Target:

         Add UDP Target:

         Delete Target:

         Edit Target:                                   Double-click on the name column

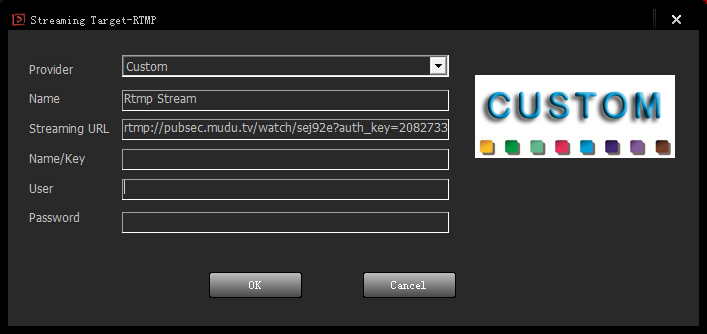

3. Add/Edit RTMP Target

         For providers, you can choose a preset provider or a custom one.

         If you choose to customize, you can enter name, stream URL, key, user name and password, and fill in according to the actual situation. If there is no key, user name or password, you can leave blank.

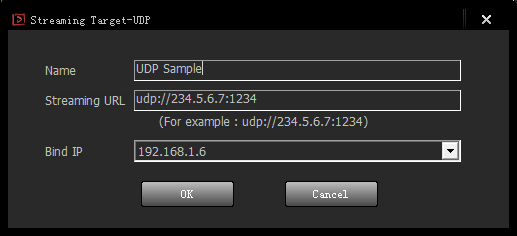

4. Add/Edit UDP Target

            Enter the name, stream address and binding address. For multi-network card, you need to fill in the binding address.

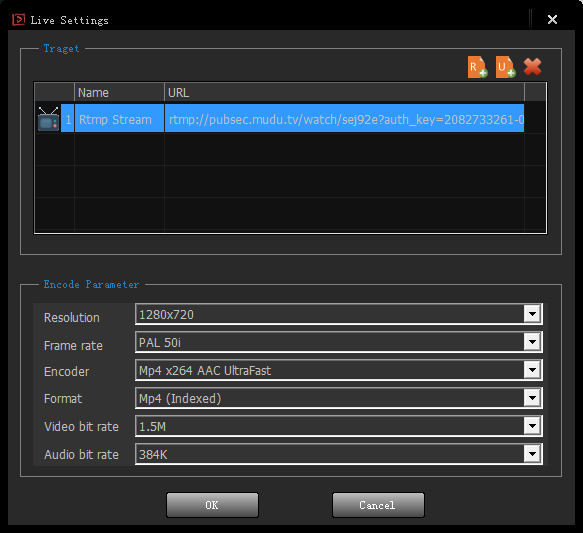

5. Setting Encoding Parameters

        The parameters of video resolution, frame rate, encoding container, encoding format, video rate and audio rate can be set.
