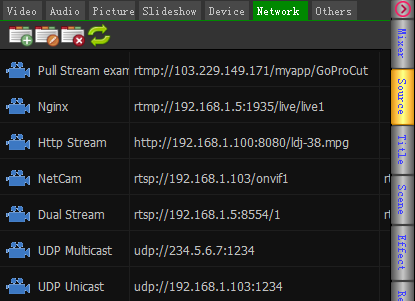

  1. Network library window lists all network source added.



                                  Add Network Source to List

                                  Edit the selected item.

                                  Remove one item from list.

                                  Refresh List


  1. Add network source to list

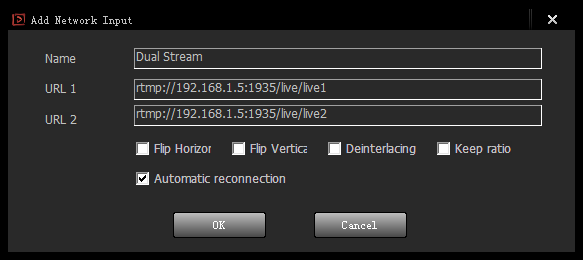

          Click ,  pop up the Add Dialog box.



          Enter the name, address 1 or address 2, and the relevant properties of the video, and click the "OK" button.

          Support http, rtsp, rtmp, UDP and other protocols.

          Each network source supports two  addresses, which are automatically switched to address 2 when the connection of address 1 is interrupted. If there is only one address, leave address 2 blank.


  1. Edit network source.

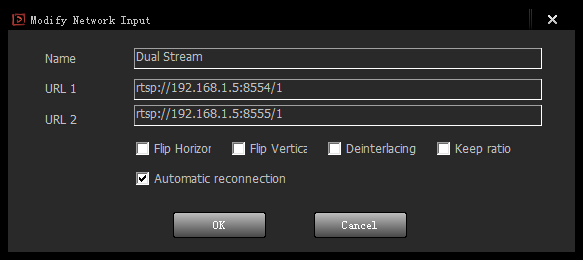

           Click,  pop up the edit dialog box.



            You can modify the name, address and related properties of the source, click the "OK" button to save.


  1. Add network source to Waiting Area

        Select one item in the list and drag it into Waiting Area.
