Source Window

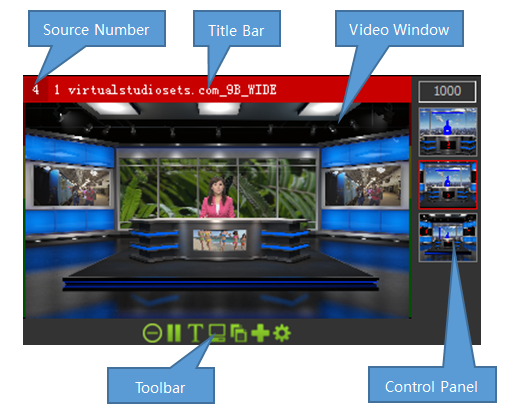

1. Source window consists of  title bar, video window, toolbar and control panel.

           Source Number:    Number the source window by its position. Click it to minimize the source window

           Toolbar:                 Different types of  sources have different toolbar.

            Control Bar:          Used by Virtual Studio, MultView and Slide source. Its function to Control switching.

2. Toolbar

      File:

      Camera:

      Network:

      Scene:

      Slide:

      Picture:

      Instant Message:

                                  Close Window

                                  Play

                                  Pause

                                  Audio is on

                                  Audio is off

                                  Loop is on

                                  Loop is off

                                  Title List.

                                  Zoom

                                  Clone Window

                                  Overlay is on

                                  Overlay is off

                                  Source Setting

                                  Connect OK.

                                  Connect Error.

                                  Not recording

                                  Recording

3. Control Panel

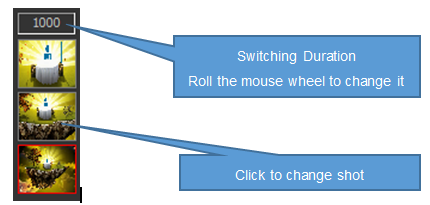

      Scene:

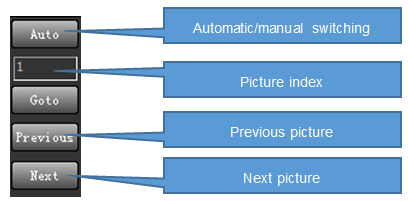

      Slide:

4. Title Bar Colour

                     Normal colour.

                     The colour is the same as the title bar of the PVM window. It indicates that the source has been switched to PVM.

                     The colour is the same as the title bar of the PGM window. It indicates that the source has been switched to PGM.

5. Add title to the source window

     Select a title from the  Title Library window and drag it to the source window.

6. Remove the title of source window

       Double-click the left mouse button to remove title.

       Or click  to popup title list dialog box. See Source Title List for detail.

7. Adding source to the sub-screen of Virtual Studio or MultiView

       Select a source window and drag it into the sub-screen of Virtual Studio or MultiView.
